Full Automatic Kitchen Towel Lamination Machine

Description

1.Double Lamination Kitchen Towel Production Lines
2.This line including two sets paper tissue rewinder machines with double lamination units + log saw cutting machine, it will produce kitchen towel,toilet paper roll, JRT rolls on one machine.
3.Machine Speed: 200-250m/min
4.Siemens PLC control
5.Option: full embossing unit, edge embossing unit, lamination unit, perfume unit,color printing unit.
6.Place of Origin: Foshan, China
7.Transport Package: Standard Exporot Wooden Cases

Chat Now Send Inquiry

Performance Description

Main Technical Parameter

Products Introduction

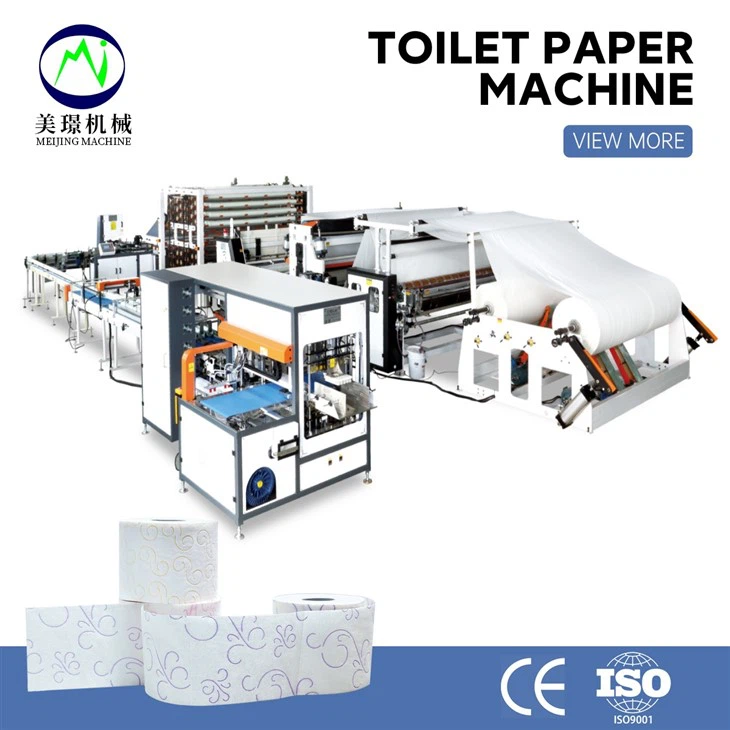

Full Automatic Kitchen Towel Lamination Machine

Full Automatic Kitchen Towel Lamination Machine is adjustable to meet the requested finished product of toilet paper and kitchen towel, or maix roll. The machine will process the raw material from jumbo roll after full embossing /lamination or edge embossing, then perforation, end cutting and spray the tail glue become a log. Then it can working with cutting machine and packing machine to become the finished products (toilet tissue/kitchen paepr /maxi roll).

1. The speed of this rewinder is up to 250m/min, 4 logs per minute.

2. Equipped with level color glue lamination system for kitchen towel / toilet tissue production.

3. The glue lamination system unit included two big sets embossing unit.

4. The jumbo roll stand with double or three belt driving system,

5. The jumbo rolls can be up to 1500mm diameter, and with a pneumatic loading of jumbo roll system.

6. This production line can be automatically changed core, finished product automatic loading and unloading, sealing tail, auto cutting, size can be adjusted, convenient for users to produce products of different specifications

7. Driving by frequency conversion control speed and stable performance.

8. Stop operation in case of machine failure, missing core or other unforeseeable problems.Maximum protection of raw materials, machine durability

9. The main engine driving system adopts synchronous belt conveyor, independent motor system and gear, and free maintenance within 2 years.

10. The touch screen can monitor the operation of the machine and setting parameters.

Technical Data

Machine Model	FS-DJ-1575-3500
Machine Speed	200~250m/min
Jumbo Roll Width	1800mm -3500mm
Jumbo Roll Diam	1500mm
Jumbo Roll Inner Core Dia	76.2mm (3 inch)
Jumbo Roll Stands	Pneumatic Lifting Jumbo Roll, and Left-Right Adjusting Device
Driven	by individual motor and frequency inverter
Perforator Pitch	100~220mm (4 Blades); driven by individual motor
Finished Product Dia	100~300mm
Parameter Setting	Touch Screen Operating Interface
Installed power	7.5-25kw
Machine Stucture	Wallboard Type
