Description

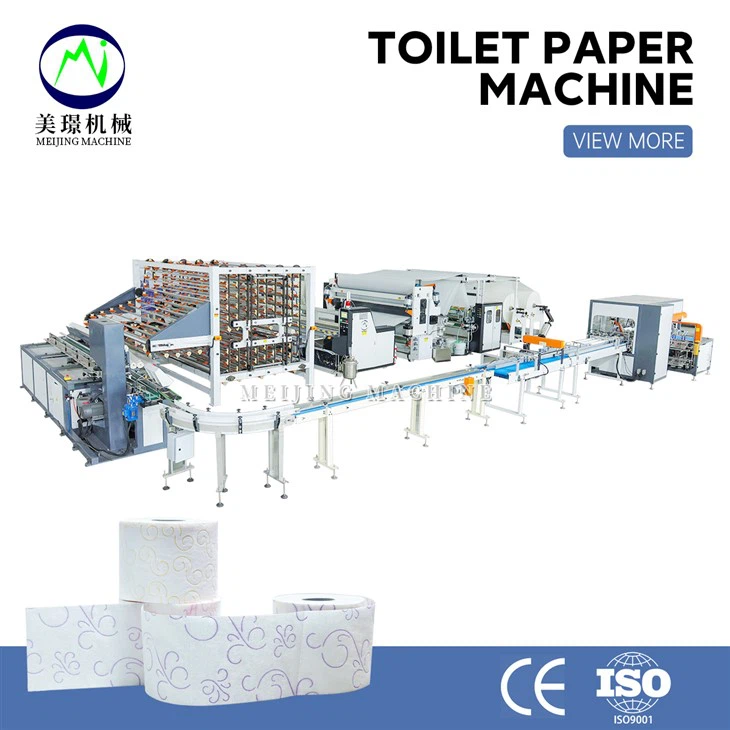

1.Fully-automatic Toilet Paper roll /kitchen Towel production line
2.Including one sets of Tissue Rewinders + Conveyor + Log Saw Cutting machine + stacking unit + Fully-automatic Toilet Roll Plastic Film Bundle Packing Machine
3.Machine Speed: 240-250m/min
4.Siemens PLC control
5.Option: full embossing unit, edge embossing unit, lamination unit, perfume unit,color printing unit.
6.Place of Origin: Foshan, China
7.Transport Package: Standard Exporot Wooden Cases
Full Automatic Toilet Paper Roll Production Line is the latest model based on the design of domestic automatic rewinding machine and combined with foreign manufacturing technology.We have a total of five series (1575.2000.2200.2800.3200). The Max jumbo roll width suit for each of them, they are 1800 mm. 2000 mm. 2200 mm. 2800 mm. 3200 mm.

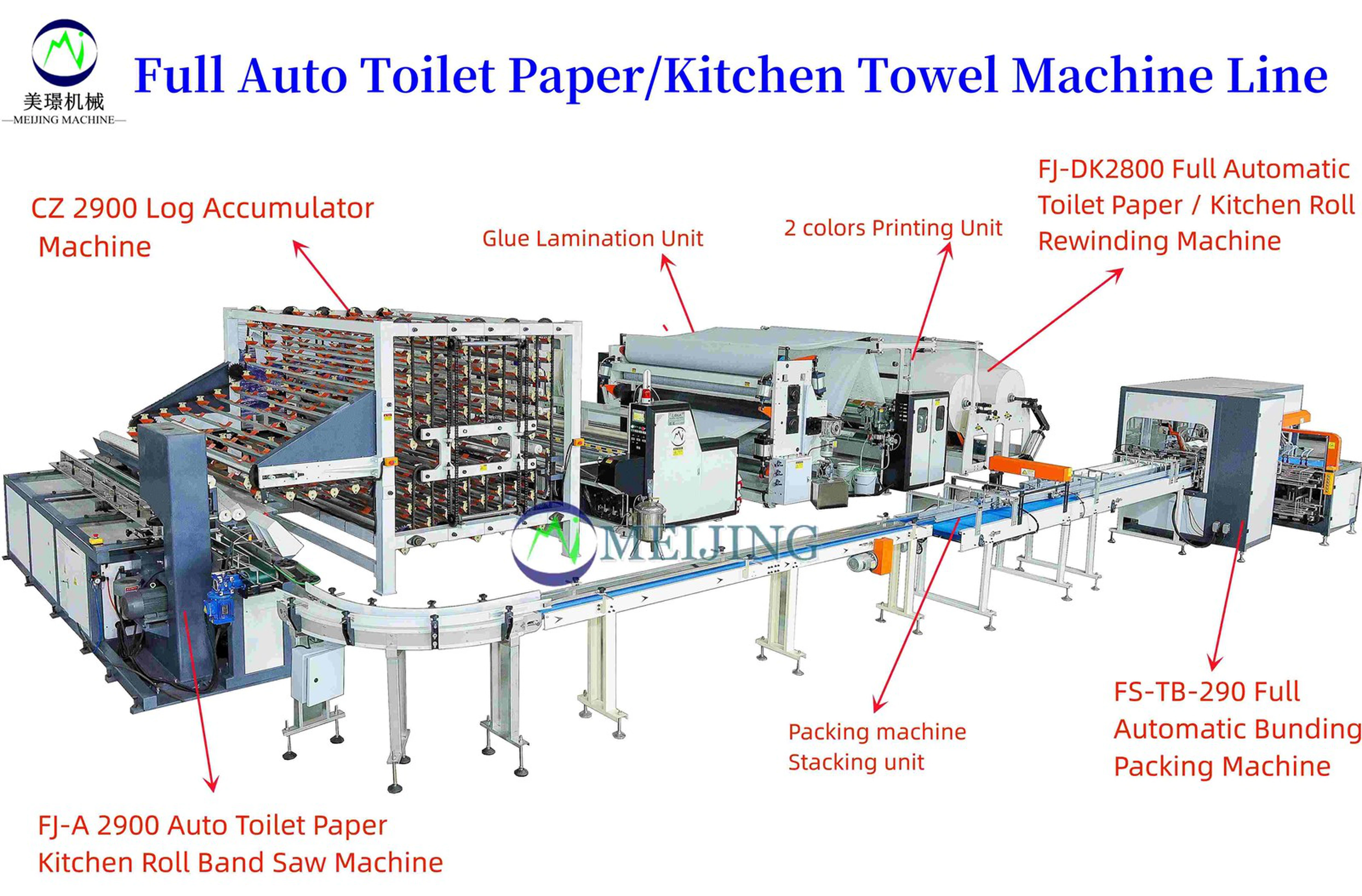

Full Automatic Toilet Paper Roll Production Line is including:
one set of Tissue Rewinders
one set of Log Saw Cutting machine
one set of Fully Automatic Toilet Roll Bundle Packing Machine
1.Equipped with a chain plate conveyor or flexible conveyor, can be connected with the conversion machinery.
2.Full Automatic Toilet Paper Roll Production Line can be equipped with ink printer, automatic printing production date, batch number, etc.
Toilet Paper Making Machine:
1. Machine with spiral blade perforation.The roll is machined with high precision.The blades are made in Germany.Low noise under high speed operation.
2. Packaging can be side ironed, tail seal, trim, spray adhesive, tail seal at the same time.Embossing device and gluing device, embossing device is the selected item.Beautiful designs are a good way to attract customers.
3. Upgraded many advanced control technologies and process control systems;Human-machine interface;Switch between English and Chinese with one key;Can do other languages, synchronous frequency conversion drive system.
4. The high-speed kitchen paper towel production line is equipped with a web tension adjustment system, which adjusts the speed according to the tension of different base paper.
| Full Automatic Toilet Paper Rewinding Machine | |||||||
|
Machine model |
1760 |
2200 |
2500 |
2800 |
3000 |
3200 |
3500 |
|
Width (mm) |
2000 |
2200 |
2500 |
2800 |
3000 |
3200 |
3500 |
|
Finished product dia |
Φ 90～250 Tightness is adjustable. |
||||||
|
Finished product inner dia |
Φ32～50 mm |
||||||
|
Jumbo roll dia(mm) |
Φ 1500 (Other sizes can be specified) |
||||||
|
Jumbo roll core inner dia |
76.2 mm (Other sizes can be specified) |
||||||
|
Perforation size (mm) |
(4 blades),90～160mm;(2 blades),180～320mm; |
||||||
|
Production speed |
200～220m/ min |
||||||
|
Parameter setting |
Touching Multi-menu Man-machine Interface Operating System |
||||||
|
Programmable controller |
Siemens PLC program |
||||||
|
Jumbo roll stand |
1-3 plies (ply quantity is as per order) |
||||||
|
Air pneumatic system |
3 Pa air-compressor, which the minimum pressure is 5kg/cm2 Pa (Supplied by User) |
||||||
|
Power |
7.5-25KW (380V,60HZ) |
||||||
|
Overall size |
10 X (3-3.5) X 2 |
||||||
|
Weight of equipment |
4000～10000kg (approx) |
||||||
|
Chosen items |
|||||||
|
Embossment |
Single embossment, double embossment, steel to steel embossment |
||||||
|
Counter-embosser |
Felt roller, paper roller, rubber roller |
||||||
|
Jumbo roll stand |
1-3 plies |
||||||
|
Printing |
1-2 colors can be ordered. |
||||||
|
Kitchen towel |
Point-to-point embossment glue laminating system (should be ordered separately), Driven by servo; No counter point embossment glue laminating system (separate order). |
||||||
|
Embossment |
Steel to steel, steel to rubber |
||||||
|
High-speed Log Saw cutting machine Saw cutting machine |
|
|
Paper roll length |
1500mm-3500mm |
|
Paper roll outer dia |
Φ90mm-Φ150mm(standard size:110±5mm) |
|
Cutting length |
(length is changeable, servo control) |
|
Speed |
150 cuts/min, 2 rolls/ cut |
|
Round blade outer dia |
Φ610mm |
|
Installed power |
10KW ,(380V50HZ) |
| Fully Automatic Toilet Roll Bundle Packing Machine | |
| Application Scope | Toilet roll/kitchen towel, 2-4-6-8-10-12 rolls/bag |
| Packing Material | CPP, CPP, packing film |
| Packing film thickness | 0.05mm~0.1 mm |
| Packing film outer dia | ￠380mm |
| Packing film core dia | 75mm~78mm |
| Packing speed | 18-25/bags/min |
| Dimension | 630mm×1800mm×1700mm |
| Power | 6kw |
| Weight | 3000kg |
