Toilet Tissue Roll Making Machine

Description

1.Model:FJ-DK 1575-3500B
2.Application:To produce bathroom tissue rolls,bathroom tissue paper,bathroom paper tissue,toilet paper rolls,toilet tissue rolls,toilet paper,toilet tissue paper,toilet paper tissue, toilet tissue paper roll,toilet paper tissue roll
3.Machine Speed: 200-250m/min
4.Siemens PLC control
5.Option: full embossing unit, edge embossing unit, lamination unit, perfume unit,color printing unit.
6.Place of Origin: Foshan, China
7.Transport Package: Standard Exporot Wooden Cases

Chat Now Send Inquiry

Performance Description

Main Technical Parameter

Products Description

Toilet Tissue Roll Making Machine

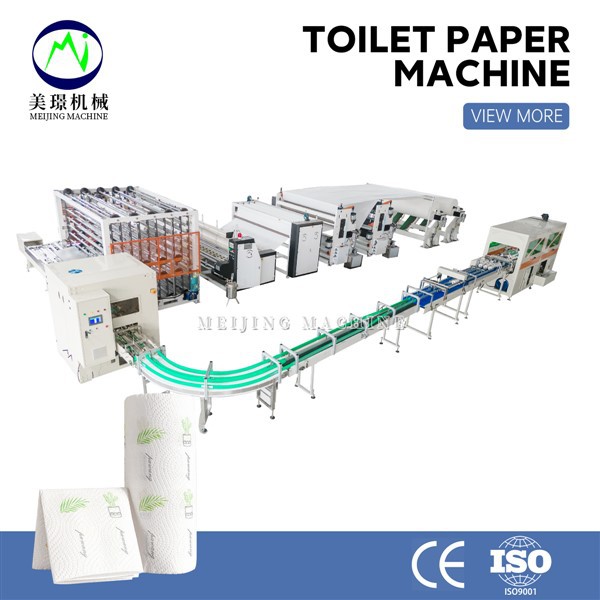

Toilet Tissue Roll Making Machine is used for processing toilet paper rolls/kitchen towel. The parent paper is rewound by embossing and crimping, then cut and sealed with glue, connected to cut machine and pack machine to get the final product. The bearings, electrical components and synchronous belts are made of famous brand products.Using PLC asynchronous servo control, the slave motor follows the main motor to run, and the paper surface tension is stable during the rewinding process. It avoids the paper surface wrinkling caused by the loose and tight paper surface caused by the chain drive on and off, the fluctuation of the punching pitch, and the uneven tightness of the paper ball.

1.All-steel rollers have obvious patterns with rolling patterns; rubber rollers or wool rollers can be used for reliable service life.

2.Toilet tissue roll making machine is processed by an independent motor drive, delivering paper with pneumatic wide belt.

3.The machines transmission is Independent motor driving and independent converter, the main machine and the embossing, embossing and unwinding stands.

4.When raising and lowering the speed, the main machine has good synchronization with the rear frame, embossing, etc., and the rewinding speed is improved.

5.The tension adjustment between each functional unit sets the parameters through the touch screen, which is convenient and quick to operate.

Technical Parameters

Name	Toilet Tissue Roll Making Machine
Model	FJ-DK 1575B-2800B
Width of jumbo roll(mm)	1800mm-2800mm
Max. outer diameter of jumbo roll	Ø 1500mm
Finished paper diameter	Ø100mm-280mm
Machine peed	200~240m/min
lumbo roll stands	2 stands (3/4stands can be customized)
Perforation pitch	100-160 adjustable
Programmable Controller	PLC computer programming
Count mode of paper roll	By diameter or by sheets.
Optional device	Embossing unit,lamination unit,Glueless seal unit
