Toilet Paper Tissue Converting Machine

Description

1.Model:FJ-DK 1575-3500D
2.Application:To produce bathroom tissue rolls,toilet toilet paper tissue roll, JRT Rolls
3.Machine Speed: 200-250m/min
4.Siemens PLC control
5.Option: full embossing unit, edge embossing unit, lamination unit, perfume unit,color printing unit.
6.Place of Origin: Foshan, China
7.Transport Package: Standard Exporot Wooden Cases

Chat Now Send Inquiry

Performance Description

Main Technical Parameter

Production Introduction

Toilet Paper Tissue Converting Machine

Full Automatic Toilet Paper Tissue Converting Machine can be used to produce toilet paper and coreless toilet paper prouducts. Automatic toilet paper machine can also be equipped with additional functions, such as: automatic glue tail trimming, automatic changing core, pneumatic paper, single-side embossing, double-side embossing, remote control and other functions, these functions are customized according to the requirements of customers.

1. Pneumatic paper loading for jumbo roll (unwinding stands)

2. Left and right adjusting device.

3. Max dia: 1200mm or 1500mm

4.Toilet Paper Tissue Converting Machine can be equipped with 2 jumbo roll stands

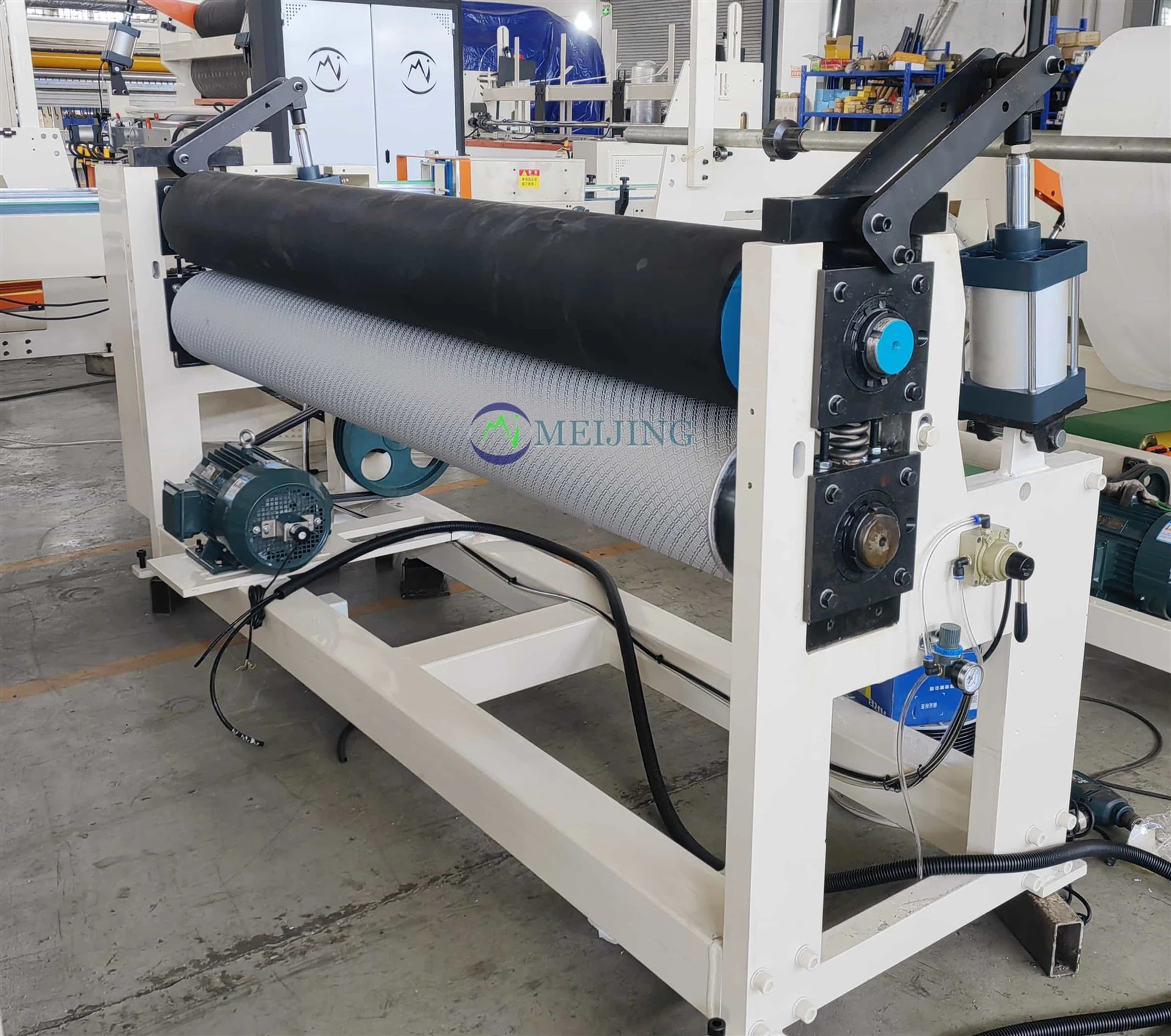

5. Steel to steel, or steel to rubber.

6. Steel Roll Processing way: high precision Electric Engraving

7. Embossing roll dia: 240mm-400mm

8.We will provide embossing patterns for free or design it as your demands

Parameter Introduction

Jumbol Roll width	1300~3500mm (customized), max. diameter 1500mm,
Speed	200-250m/min
Unwinding system	Horizontal type unwind stand, delivering paper with pneumatic wide belt,
Jumbo rolls stands	2 stands
Parameter setting	Touching screen
Programmable controlle	PLC Siemens
Main transmission power	Toilet Paper Tissue Converting Machine is Variable frequency converter
Driving system	Stepless gearbox, synchronous belts and chains for transmission
Counting system	Electric counter
Counting controller	Diameter & sheet counting controller
Motor	Three phase motor
power supply	7.5-22Kw, 380V, 50Hz or can be speciftied.
Main frame structure	Wallboard type
