Machine To Make Toilet Tissue

Machine To Make Toilet Tissue

Description

1.Model:FJ-DK 1575-3500B
2.Application:To produce bathroom tissue rolls,bathroom tissue paper,bathroom paper tissue,toilet paper rolls,toilet tissue rolls,toilet paper,toilet tissue paper,toilet paper tissue, toilet tissue paper roll,toilet paper tissue roll
3.Machine Speed: 200-250m/min
4.Siemens PLC control
5.Option: full embossing unit, edge embossing unit, lamination unit, perfume unit,color printing unit.
6.Place of Origin: Foshan, China
7.Transport Package: Standard Exporot Wooden Cases

Performance Description

Main Technical Parameter

Production Introduction



product-2000-1412

Machine to Make Toilet Paper is composed of wall-paneled fully automatic colored kitchen paper/toilet paper rewinder, band saw cutting machine and single-grain roll toilet paper semi packaging machine. From the original paper to the finished cutting output in one go, the whole line with smooth, stable operation, all by the automatic completion of machinery, greatly save labor costs, reduce the labor intensity of workers, is the best choice for the production of toilet paper products.



1.The wallboard structure of the machine to make toilet paper, the whole machine runs at high speed, the speed is stable, lower noise

2.Fully automatic paper tube replacement device, no need to wear paper tube manually.

3.Independent wall plate color glue structure device, the whole structure consists of two sets of steel-to-glue rollers, a set of abdominal closed rubber rollers combined.

4.Gluing lamination unit to make paper rolls have the same double-sided effect, and each layers of paper will not fall apart during using to reducing weight.



Technical Parameters

Machine Name Machine to Make Toilet Paper
Model FJ-DK 1575B,2500B,2800B,3000B,3200B
Diam of jumbo roll(mm) 1500mm
Width of jumbo roll 1800mm,2500mm,2800mm,3000mm,3200mm
Production Speed 200-240m/min
Power 7.5kw-25kw
Finished Product Dia 80-280mm
Finished product size control Counting type, diameter type, adjustable winding tightness.
Perforating Device Pneumatic control
Finished Roll Rewinding With core or coreless rewinding system

Unwinding stands

1-3
Pneumatic System

3HP AirCompressor, Minimum Pressure: 5kg/cm 2Pa



Machine Details

product-3016-2687

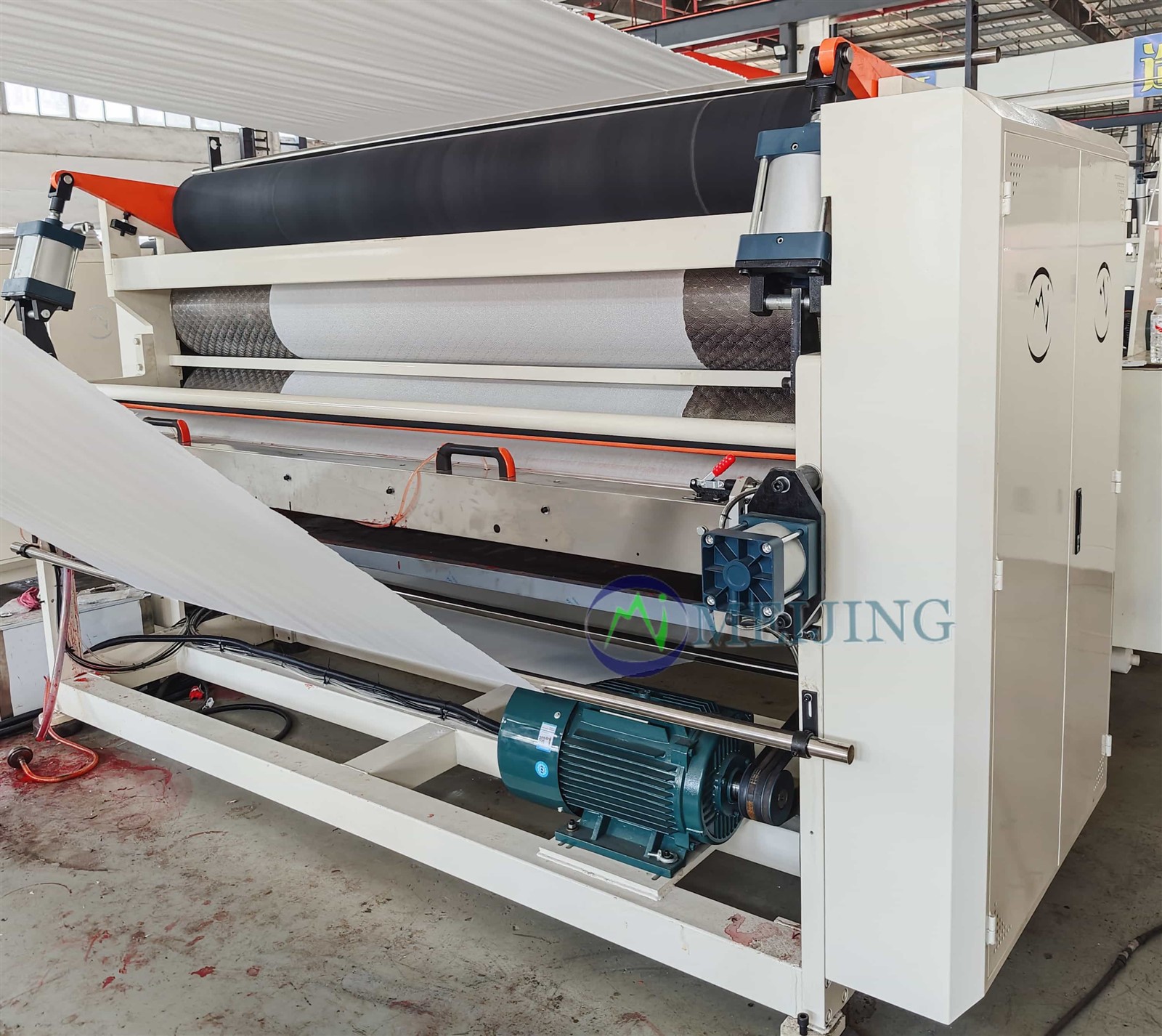

Glue Lamination  Unit
product-2996-2650
Full Embossing Unit

Finished Products

product-965-864
Toilet Paper
product-682-616
Kitchen  Towel

Machine Video
