Description

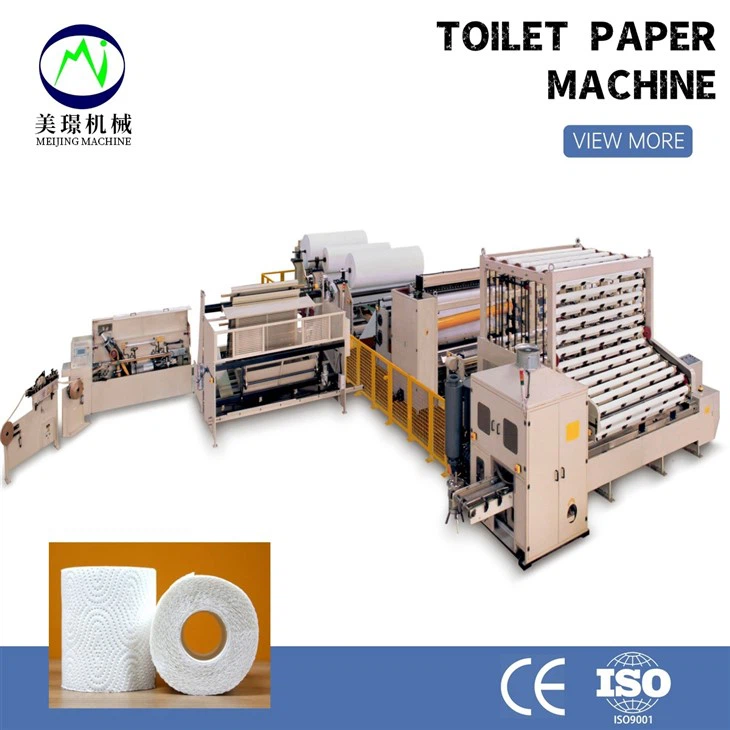

1.Non-stop toilet paper/kitchen towel production line.
2.Including non stop rewinder + paper tube automatically feeding and changing + log accumulator + high speed log saw machine with 4 channels + Roll Core Machine
3.Speed up to 350m/min
4.Siemens PLC control
5.Option: full embossing unit, edge embossing unit, lamination unit, perfume unit,color printing unit.
6.Place of Origin: Foshan, China
7.Transport Package: Standard Exporot Wooden Cases
The High Speed Toilet Paper and Kitchen Towel Production Line adopts the machine to rewinding the paper tissue the neat toilet paper logs.The machine starts with automatic feeding and rewinding, equipped with a large capacity paper roll accumulatore device running well
1.Work Flow: unwinding, embossing, folding, perforating, unwinding, independent motor drive, frequency conversion control.
2.Simens PLC electronic and servo drive technology, engineer design computer programming, man-machine interface operation in Both English and Chinese.Other small languages can be set, reliable machine performance.
3. Straight in machine web cutting.precise log diameter control system is accurate and easy operating;
4. Servo control perforation to secure accurate and stable sheet and pitch, and pitch is adjustable
5. Each unwind back stand is equipped with web tension control system to secure real time monitoring and web tension precise adjustment;
6. Single and double embossing device, exquisite pattern, to attract customers to buy.
7. All the roller including the perforation pitch blade roller, rewind roller have got the anneal transact and movement balance
Options
Embossing : single embossment, double embossment, steel to steel embossment
Lamination for toilet paper
Lamination for kitchen towel (Point to point lamination or Nested lamination system)
Non Stop Toilet Tissue Rewinder：
| Max. jumbo roll width | 2800mm |
| Max. jumbo roll dia | Φ2200mm |
| Speed | 300-400m/min,non-stop |
| Dia of finished rollers | Φ100mm –Φ170mm, toilet paper and kitchen towel |
| Core outer dia | Φ38-Φ60mm |
| Perforation size | 100-500mm (customized) |
| Tension control | Automatic parent roll tension control |
| program | PLC program controlling system, LED touch button |
| Installed power | 85KW; Voltage: 380V, 50HZ, 3 phase |
| Backstand | 2 Sets, three driving belts for the paper unwiding |
Automatic Tail Sealer：
| Max. jumbo roll width | 2800mm |
| Design speed | 10-15 logs/min |
| Log diameter | Φ100-Φ170mm |
| Power | 3.75 kw |
| Tailing | the tail trimming is inside the machine, no waste for the tails. |
Toilet Roll Accumulator：
| Paper width | 2800mm |
| Feeding system | First in, first out system |
| Capacity | 360 logs |
|
Loading |
Automatic loading system from the tail sealer. |
| Automatic unloading system to log saw | |
| Up to 20 logs per minute discharge. |
Full Automatic Log Saw Machine for toilet pape/kitchen towel：
| Cutting Speed | 100-120 cuts/min, 3 rolls/cut. |
| Log length | 2800mm |
| Log diameter | Φ100mm-Φ150mm. |
| Cutting length | Variable, a servo drive index system. |
| Blade diameter | ф800mm |
| Clamps | adjustable |
|
Sharpen |
Automatic sharpening system |
| Automatic blade adjustment on the cutting level | |
| Servo Drive Trim removal system | |
| Installed power | 15kw, 380V, 50HZ, 3 phase; |
| Control | MITSUBISHI PLC |
