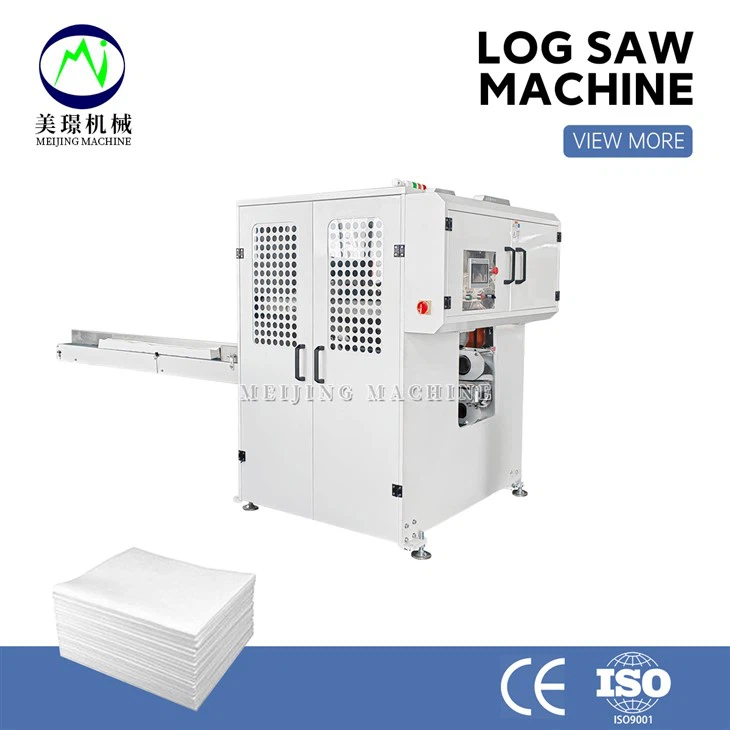

Automatic High Speed Log Saw Cutting Machine for Facial Tissue or Hand Towel

Description

1.Machine Model: DH-M120-I Log Saw Cutter
2.This log saw is designed for cutting facial tissue & V fold hand towel
3.PLC control, servo drive
4.Cutting Speed: 100cuts/min/line
5.Place of Origin: Foshan, China
6.Transport Package: Standard Exporot Wooden Cases

Performance Description

Main Technical Parameter

Products Introduction



The Automatic High Speed Log Saw Cutting Machine for Facial Tissue or Hand Towel cutting, it will match with facial tissue folding machine and facial tissue packing machine to be production line.



1. PLC controlled, touch screen operating, servo motors controlled. Adopting the advanced PLC computer programming control & touching screen, This allows operating the machine very easily.

2. You can cut facial tissues and V-fold towels. It's a multi-function machine

3. Fast speed and convenient adjustment for products of different sizes.

4. Clean incision will not crush or tear product.

5, The latest electronic and servo drive technology, PLC control, improve the cutting stability, cutting flat.

6. the facial tissue Logs feeding are driven by two servo motors, to make sure cutting exactly length roll and the cutting surface is smooth

7. Servo motors controlling allows the products locate more accurately and better tidy of the cut.



Technical Parameter

Automatic High Speed Log Saw Cutting Machine for Facial Tissue or Hand Towel

Cutting Size

(90-250)*(60-120)*(60-120)mm

Tissue Log Length

max 2100mm

Driving system

Servo motor drive feeding belt

Cutting system

Rotating circular knife movement and continued tissue marching

Speed

100-120 cuts/min

Grinding

Pneumatic grinding, parameter can be set on the control panel

Cutting length adjustment

On control panel, tolerance ±1mm

Cutting vertical tolerance

±1mm

Power

7.5Kw

Driving

Independent moter drive,

Protection

Protective cover for the main driving unit



Some Details



facial tissue log saw.jpg  facial tissue cutter.jpg

Facial Tossue Logs                                                       Cutting Blade
