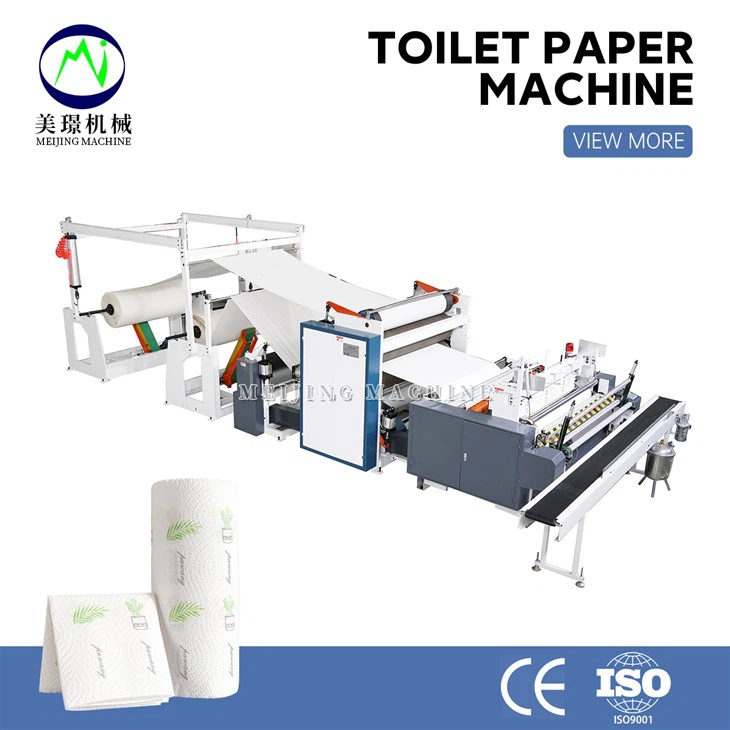

Kitchen Towel Manufacturing Machine

Description

1.Model:FJ-DK 1575-3500B
2.Application:To produce bathroom tissue rolls,bathroom tissue paper,bathroom paper tissue,toilet paper rolls,toilet tissue rolls,toilet paper,toilet tissue paper,toilet paper tissue, toilet tissue paper roll,toilet paper tissue roll
3.Machine Speed: 200-250m/min
4.Siemens PLC control
5.Option: full embossing unit, edge embossing unit, lamination unit, perfume unit,color printing unit.
6.Place of Origin: Foshan, China
7.Transport Package: Standard Exporot Wooden Cases

Chat Now Send Inquiry

Performance Description

Main Technical Parameter

Production Introduction

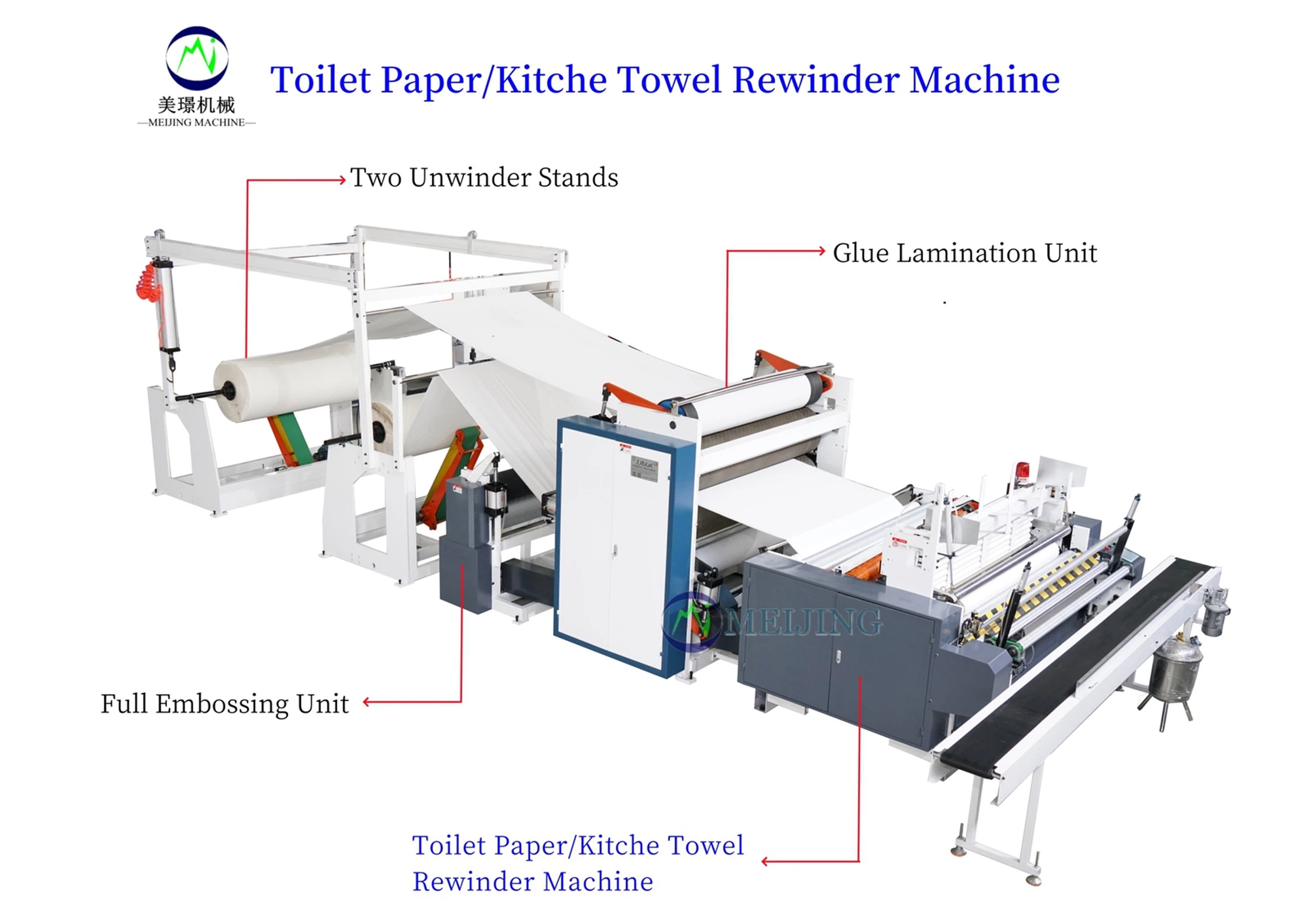

Kitchen Towel Manufacturing Machine

Kitchen Towel Manufacturing Machine adopts advanced PLC computer programming technology, frequency conversion speed regulation, electronic brake and is equipped with a touch-type multi-screen man-machine interface operating system. Various shafts are installed on two precision-machined wall panels, and the shafts are driven by synchronous belts, and the overall structure is stable and reliable. And independently developed a remote communication service system, which can monitor the operation of the machine at any time.

1.Kitchen Towel Manufacturing Machine with an automatic paper tube changing device, no need to wear paper tube manually, the finished product will be sent out automatically after rewinding.

2.After rewinding and forming, the automatic delivery system adopts the patented technology of robotic arm pushing material to deliver the finished product smoothly.

3.The raw paper monitoring system monitors the raw paper in real time during high-speed operation to ensure the normal operation of the equipment and reduce labor costs.

4.Three-layer horizontal unwinding rack, pneumatic paper feeding, pneumatic wide belt feeding, each roll of raw paper has an independent tension adjustment device.

Technical Parameters

Name	Kitchen Towel Manufacturing Machine
Model	FJ-DK 1575B~3200B
Jumbo Roll Width	1800/2200/2500/2800/3000/3200mm
Diam of jumbo roll	1500mm
Finished Log Outer Dia.	φ100-280mm

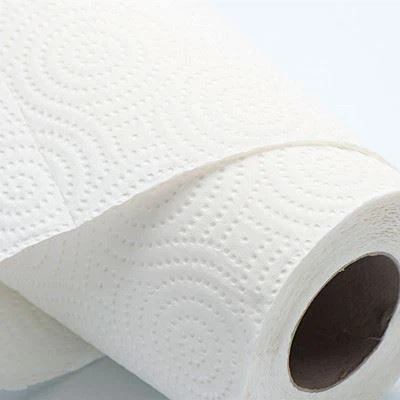

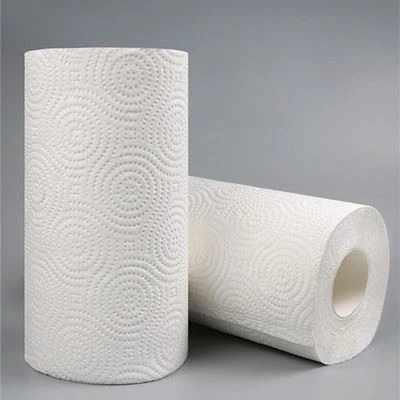

Finished Products Usage	Toilet Paper/Kitchen Towel/Maxi Roll/Industrial Roll
Production Speed	200~240m/min
Parameter setting	Touching Screen interface operation (Siemens)
Programming controller	PLC (Siemens)
Options:

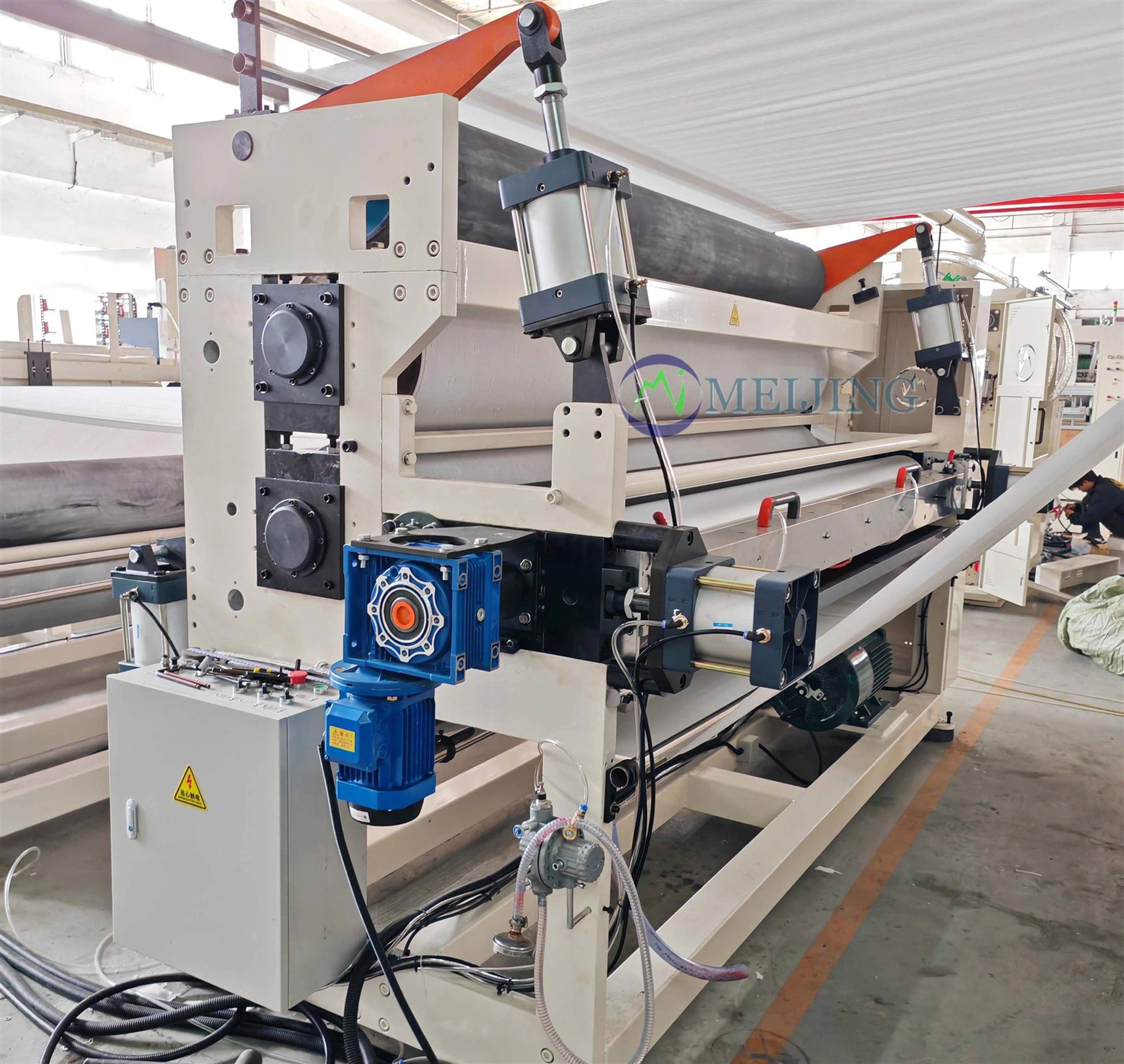

Embossing Unit	Steel to Rubber, Steel to Steel
Color Printing Unit	1-2 Colors can be order
Lamination Unit	Can be ordered
