Face Tissue Lamination Machine

Description

1.Machine Model: FS-FCS210/2-8
2.Application: To produce V folded Face Tissue,Facial Tissue Products, Hand Towel
3.Machine Speed: 1000-1200 sheets/min/line
4.PLC computor program control,frequency invertor to adjust speed,auto counting.
5.Option: full embossing unit, edge embossing unit, lamination unit, perfume unit,color printing unit.
6.Place of Origin: Foshan, China.
7.Transport Package: Standard Exporot Wooden Cases

Chat Now Send Inquiry

Performance Description

Main Technical Parameter

Products Introduction

hand towel machines-

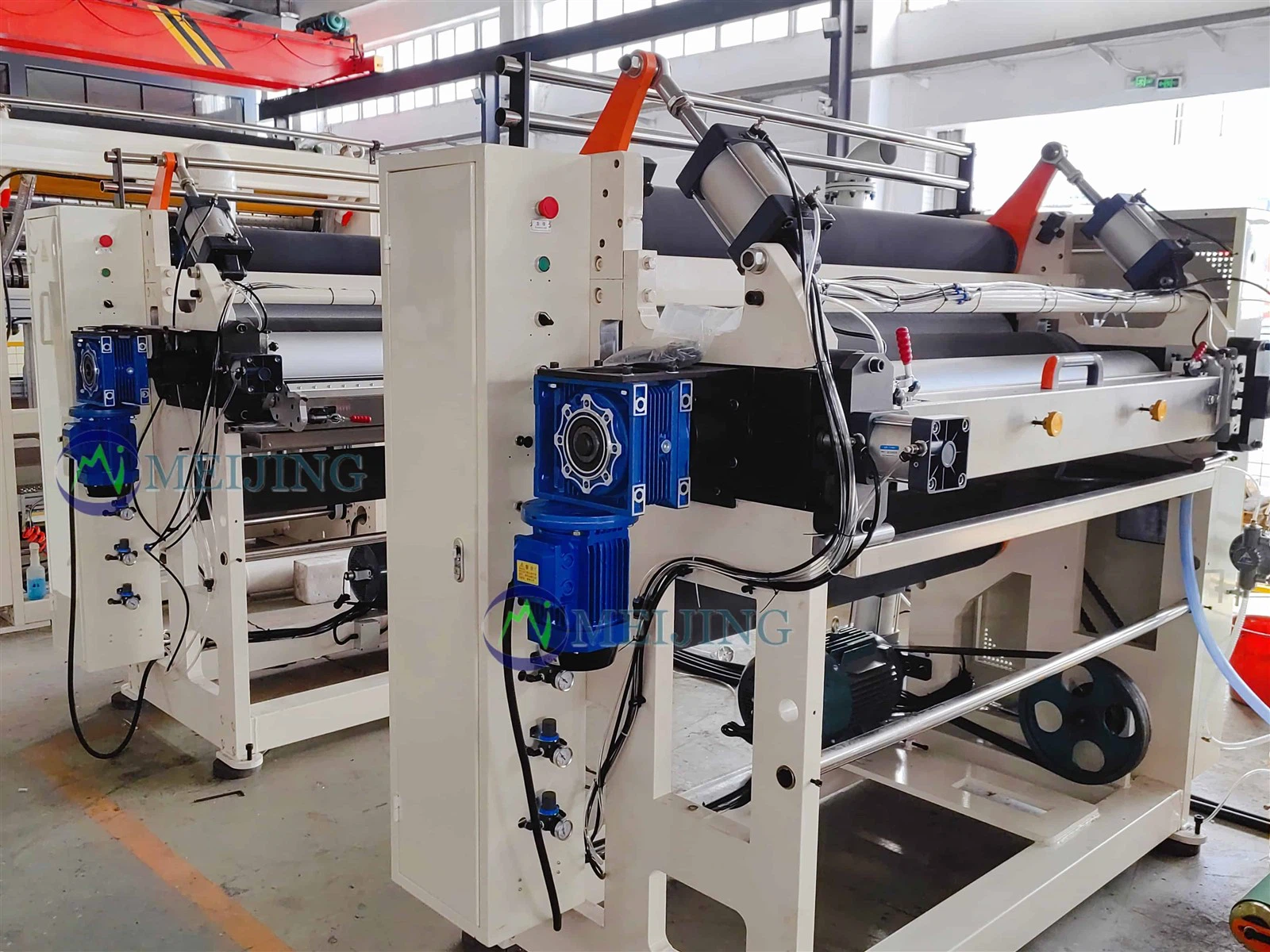

Face Tissue Lamination Machine is used to produce facial tissue, hand towel and other products with two functions.A variety of products open a variety of markets, bringing unlimited possibilities.

Facial towel laminating machine is a complete production line connected with paper cutting machine + towel packaging machine. It can produce soft towel or hand towel from folding machine to packaging machine without the need for workers to operate each machine, which can greatly improve efficiency and reduce work cost.

1. Key parts are lubricated automatically to extend the service life

2. Accurate counting, small loss band, paper tension controller

3. Use the cutting roller to cut the base paper, and then fold into a small rectangle, a rectangle

4. Equipped with vacuum adsorption system and automatic counting and cutting system, pneumatic paper feeding,

5. Synchronous belt drive system, the machine has fast speed,

6. Production procedures of face tissue lamination machine : unwinding → embossing (glue lamination)→ folding →cutting → packing.

7. Machine will stop automatically when jumbo roll paper is broken or exhaust.

8. Frequency transformer controlling, automatic detect and adjust tension of feeding paper when the jumbo roll diameter is changing.

Production Introduction

Machine Name	Facial Tissue Lamination Machine
Machine Model	7 lane
Jumbo Roll Size	Width: 1500mm
	Dia: 1200mm
	Gsm: 14-24gsm/ply
Finished Products	Facial tissue/ hand towel
Machine Speed	7000-8000 sheets/min
Lamination system	two sets, closed scraper system, included two big embossing uint
Program control	Siemens brand, PLC
Edge embossing	Steel to steel
Machine Structure	Wallboard type
