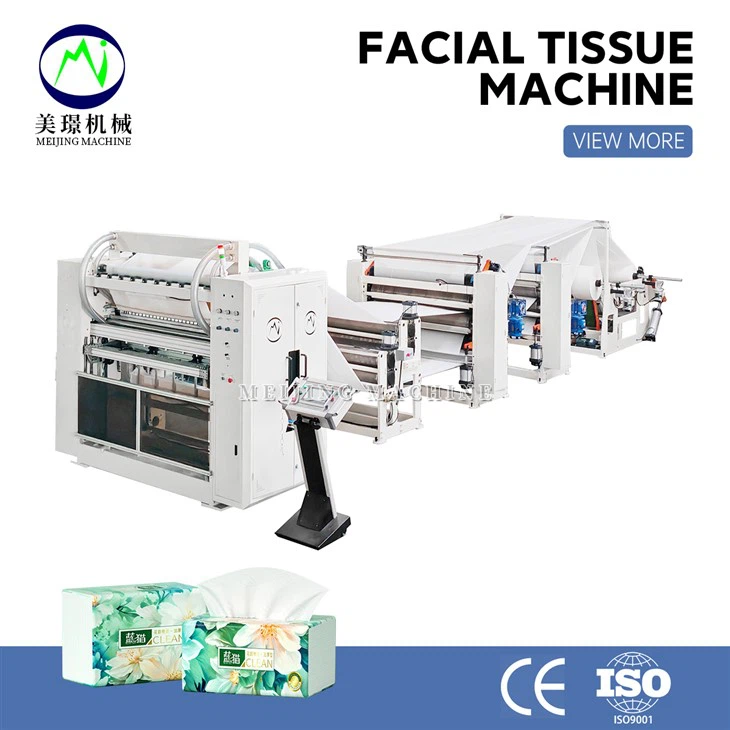

Facial Tissue Interfolding Machine

Description

1.Machine Model: FS-FCS210/2-8
2.Application: To produce V folded Face Tissue,Hand Towel
3.Machine Speed: 1000-1200 sheets/min/line
4.PLC computor program control,frequency invertor to adjust speed,auto counting.
5.5.Option: full embossing unit, edge embossing unit, lamination unit, perfume unit,color printing unit.
6.Place of Origin: Foshan, China.
7.Transport Package: Standard Exporot Wooden Cases

Chat Now Send Inquiry

Performance Description

Main Technical Parameter

Products Introduction

When you wanna start a facial tissue production idea, do you know how produce facial tissue? Which machine shall be needed? Please check following machines:

Features:

1. Production flow chart: unwinding - embossing unit - folding unit - cutting - counting - output.

2. V Folding Facial Tissue Paper Machine with Embossing Unit is controlled by German advanced PLC program, and features variable frequency speed control, automatic counting, Touching screen interface and switch between Chinese and English.Suitable for customers in various countries.

Main Function:

1. V-folding tissue machine is used to produce towel/tissue paper, easy to operate.

2. Supporting embossing device with clear patterns and customized patterns to meet the market demand.

3. Vacuum fold in half, V-fold type;

4. Auto counting and output into a line, which is fast and requires 2 people to take out manually;

5. Unwinding, frequency conversion, energy saving, can adapt to different tension;

6. The width of the product can be adjusted, making it convenient to make different products;

7. V Folding Facial Tissue Paper Machine with Embossing Unit is PLC programming control, pneumatic paper, save time, maximize profits

Parameter Introduction

Model	CS210/6 Facial Tissue Interfolding Machine
Finished products size	(180-210)×210mm(width is adjustable)
Jumbo roll size (mm)	Width 420-2100mm
Jumbo roll core inner dia	76.2mm
Machine speed	1000-1200draws/min/lane
Slitting system	Pneumatic mode point-cutting
Pneumatic system	3Pa air-compressor, minimum pressure 5kg/cm2 Pa (should be prepared by customers)
Machine power	10-40kw, (380V, 50Hz)
Overall size	L×W×H =7× (1.2~2.8) ×1.8m
Embossment unit	steel to rubber, steel to steel
