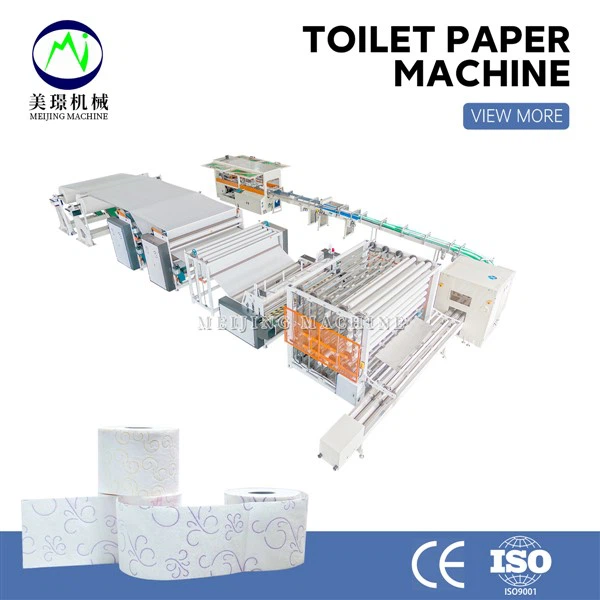

Tissue Paper Production Machine

Description

1.Model:FJ-DK 1575-3500B
2.Application:To produce bathroom tissue rolls,bathroom tissue paper,bathroom paper tissue,toilet paper rolls,toilet tissue rolls,toilet paper,toilet tissue paper,toilet paper tissue, toilet tissue paper roll,toilet paper tissue roll
3.Machine Speed: 200-250m/min
4.Siemens PLC control
5.Option: full embossing unit, edge embossing unit, lamination unit, perfume unit,color printing unit.
6.Place of Origin: Foshan, China
7.Transport Package: Standard Exporot Wooden Cases

Chat Now Send Inquiry

Performance Description

Main Technical Parameter

Production Introduction

toilet paper machine

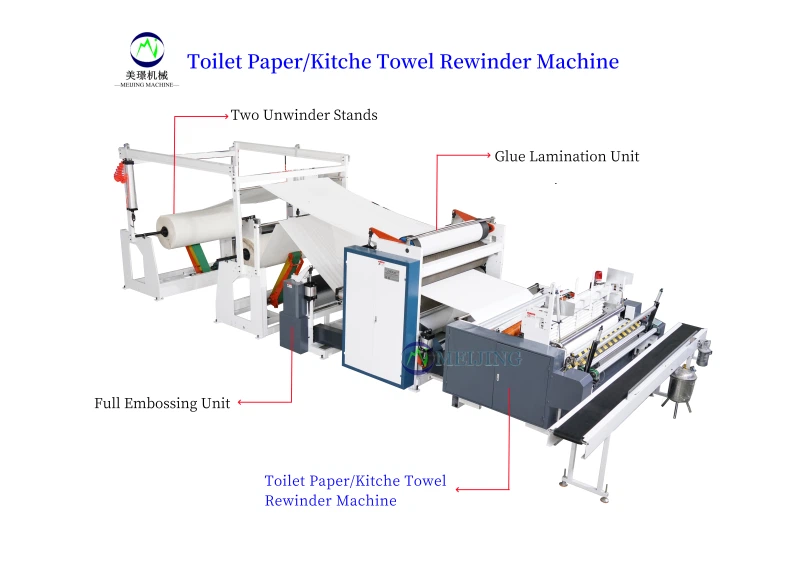

Tissue paper production machine is composed of raw material rack, paper conveying unit, embossing unit, spraying unit, punching unit, winding unit, electric control and cutting system.This machine is designed and manufactured in accordance with CE certification standards and is equipped with safety devices such as safety doors and emergency stops to protect operators.

1. The speed ratio adjustment is completed on the HMI interface to ensure that the embossed toilet paper is synchronized with the main motor.

2.Tissue paper production machine is used for embossing pattern steel on embossed paper tube.

3. The embossing device is equipped with a 395 mm diameter steel mold roll and a nitrile rubber roll.

4.Automatic paper tube changing device, no need to manually thread the paper tube, the finished product will be sent out automatically after rewinding, and the rewinding will resume immediately.

5.The front and rear inching switches are used to pull the base paper, which makes the operation easier and safer.

6.This machine adopts vacuum suction edge, fixed knife angle, stable operation and neat cut.

7.Embossing Unit Included steel to rubber embossing with air control

Technical Parameters

Name	tissue paper production machine
Model	FJ-DK 2800B
Maxi.width of parent roll	2800mm
Diameter of parent roll	1500mm
Parameter setting	Touching Screen
Perforation Pitching	4 perforating blade 100-200mm
Perforation Pitching	2 perforating blade 150-350mm;
Machine Speed	200-280m/min
Unwind stand	1-3 ply
Finished roll rewinding	Coreless rewinding system
Embossing Unit	Single embossing, double embossing, steel to steel embossing
Glue Lamination Unit	Full enclosed scrapping type
