Description
1.Model:FJ-DK 1575-3500D

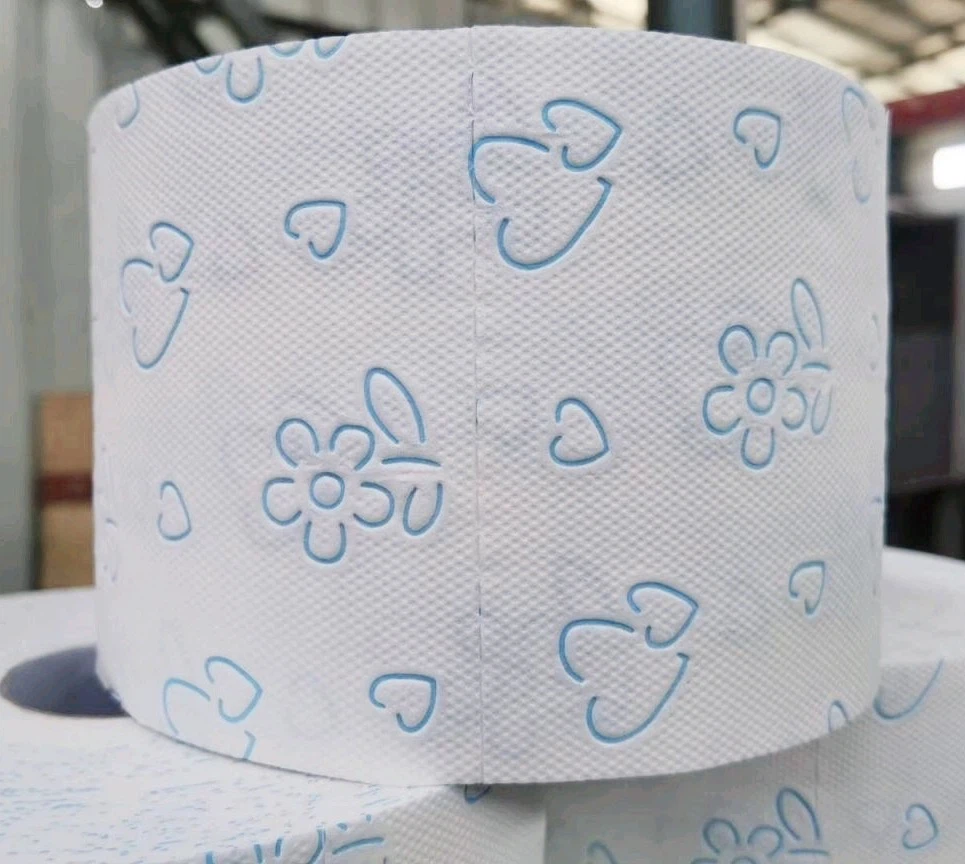

2.Application:To produce bathroom tissue rolls,toilet toilet paper tissue roll, JRT Rolls
3.Machine Speed: 200-250m/min
4.Siemens PLC control
5.Option: full embossing unit, edge embossing unit, lamination unit, perfume unit,color printing unit.
6.Place of Origin: Foshan, China
7.Transport Package: Standard Exporot Wooden Cases

This New finished Full Automatic Toilet Tissue Paper Making Machine adopts Siemens PLC control, the most important part of the whole machine is the controller, which determines the operating efficiency of the whole machine, frequency conversion synchronous control, independent servo motor drive, noise reduction to the minimum.Can produce paper towels, kitchen paper towels, large rolls of paper.Save labor cost, high degree of automation, good quality of finished products.
1. Unwinding system is Horizontal type unwind stand, delivering paper with pneumatic wide belt,
2. With individual tension control device for each roll of raw paper.
3. Sheet of finished product control: Increase gradually, up to the setting sheets
4. Perforating distance is adjustable from 90-180mm (4 knife)
5. Unwinding web tension is controlled by individual frequency converter
6. Each station is driven by individual motor and Frequency converters,
|
Jumbol Roll Size |
1300~3500mm(max. diameter 1200mm) |
|
Machine Speed |
200-250m/min |
|
Jumbo rolls stands |
1-4, (customized), |
|
Parameter setting |
Touching screen, Siemens |
|
Programmable control |
PLC Siemens |
|
Driving system |
Frequency converters, and individual motor |
|
Pneumatic system |
3HP air compressor, the mini pressure 5kg/m2pa |
|
Counting system |
Electric counter |
|
Counting controller |
Diameter & sheet counting controller |
|
Motor |
Three phase motor |
|
Power |
7.5-22Kw, 380V, 50Hz or can be speciftied. |
|
Main frame structure |
Wallboard type |
