Paper Tissue Machine

Description

1.Model:FJ-DK 1575-3500D
2.Application:To produce bathroom tissue rolls,toilet toilet paper tissue roll, JRT Rolls
3.Machine Speed: 200-250m/min
4.Siemens PLC control
5.Option: full embossing unit, edge embossing unit, lamination unit, perfume unit,color printing unit.
6.Place of Origin: Foshan, China
7.Transport Package: Standard Exporot Wooden Cases

Chat Now Send Inquiry

Performance Description

Main Technical Parameter

Production Introduction

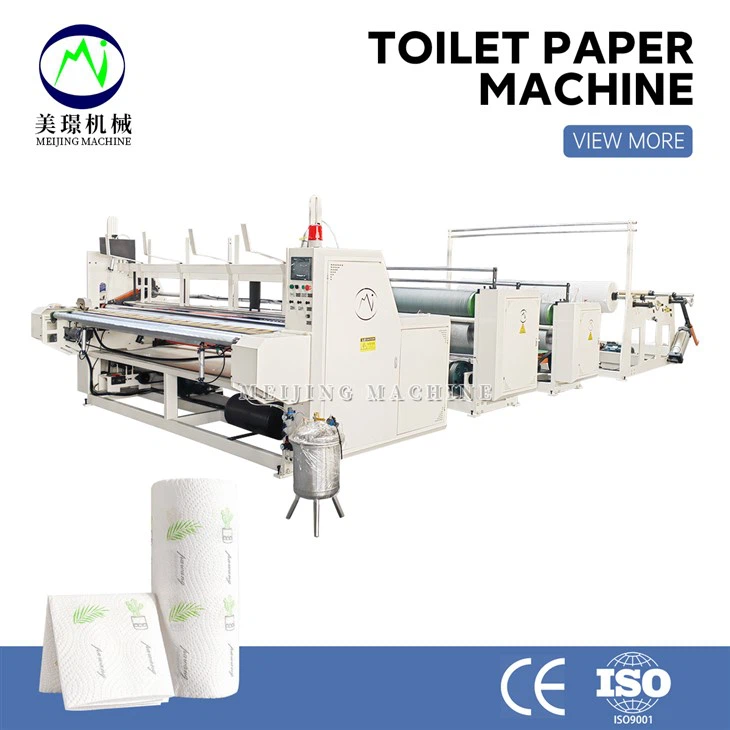

Paper Tissue Machine

The Toilet Paper Tissue Machine is equipped with raw material backstand, embossing device, edge embossing device, automatic shift device, trimming device.It can be customized as to customers' requirements to produce different kinds of toilet paper/maxi roll/kitchen towel.

1.Toilet Paper Tissue Machine adopts PLC control system design, the production process is fully automatic, and the rewinding process is first tight and then loose.

2. Stepless speed regulation, each function inside the machine can run independently.Simple operation, safe and practical

3. Independent tension control, automatically and intelligently adjust the paper tension with the big unwinding roller.

4. The giant roller stand adopts independent pneumatic installation.Save labor costs

5. Equipped with an automatic alarm device, the machine will stop automatically if there is no core tube or if the paper is torn.Auto paper breaking alarm.

6. If you do not understand anything in the production process, please come to consult.

Main Parameter

Machine Model	1575-2800
Raw Material Width	1800-2800mm
Raw Material Dia	1500mm
Finished Products	toilet paper/kitchen towel/maxi roll/industrial roll
Finished Products Dia	100-300mm
Perforation Pitch	4 perforating blade ( 90-160mm)
Program controller	PLC, Siemens Brand
Gluing System	Embossing glue applying System,drove by asynchronous servo(to be order)
Unwinding Unit	1-4 ply
Embossing Unit	double ply embossing,steel to steel,steel to rubber embossing
