Napkin Converting Machine

Napkin Converting Machine

Description

1.Machine Model: CJ-ZD250
2.Machine Speed:160m/min
3.Option: Napkin Folding,Embossing,Calendering,Printing
4.Place of Origin: Foshan, China
5.Transport Package: Standard Exporot Wooden Cases

Performance Description

Main Technical Parameter

Production Introduction

product-4059-2877

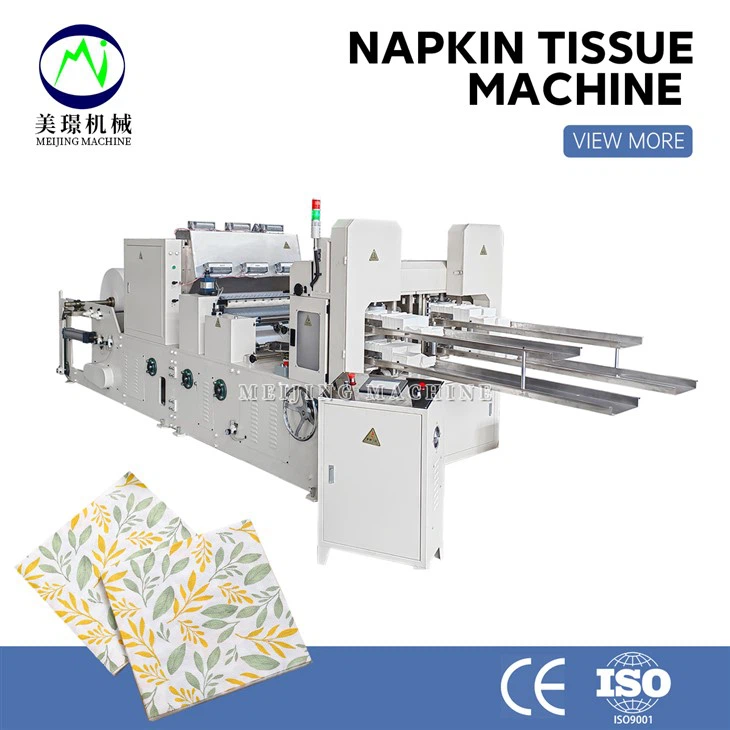

Automatic Napkin Converting Machine including jumbo tissue roll slitting machine and napkin folding machine. it can use jumbo parent toilet tissue roll as raw material to make embossed napkins.



♦ Parameters can be controlled according to your requirements.

♦ Embossed roller embossed clear.This product sells well because of its new style.

♦ Raw material is sent from the conveyor to the calender, which prints, folds and outputs the material.

♦ PLC control system, simply operation as a new buyer

♦ Printing units can be configured according to customer requirements.



Technical Datas

Model

CJ-ZD250

Raw material

18~25g/㎡, 1-3 plies

Width

960mm

Outer size

Ø1100mm

Inner size

Ø76.2mm

Jumbo roll stand

1 stand

Unfolding specification

240*240mm

Folding specification

120*120mm

Calendering unit

Steel to rubber

Printing device

2 colors

Embossment

Steel to rubber

Speed

160m/min 1500-2000 sheets/mins

Power

7.5Kw, 380V, 50Hz

Specification

4200x2200x1800mm

Weight

3800kg



Finished Products



napkin products.png  napkin tissue paper.png

Napkin Tissue                                                              Napkin Paper (printing)



Company Introduction



Foshan Meijing Machinery Manufacture Co.,Ltd


♦ Make reasonable Suggestions on equipment selection, so that you can better understand the capabilities of the equipment.

♦ Engineer site installation and commissioning, to provide customers with paper machinery, formula, technology and other Suggestions.

♦ Factory floor checks machines to ensure safety and quality.

♦ Provide technical guidance and support in production process, teach staff to operate paper machine.

♦ Equipment modification and update.Provides detailed description and assembly layout.

♦ 2 year after sales service, provide turnkey project, equipment maintenance guidance.

foshan meijing machinery

01

High Quality

02

Advanced Equipment

03

Professional Team

04

Custom Service
