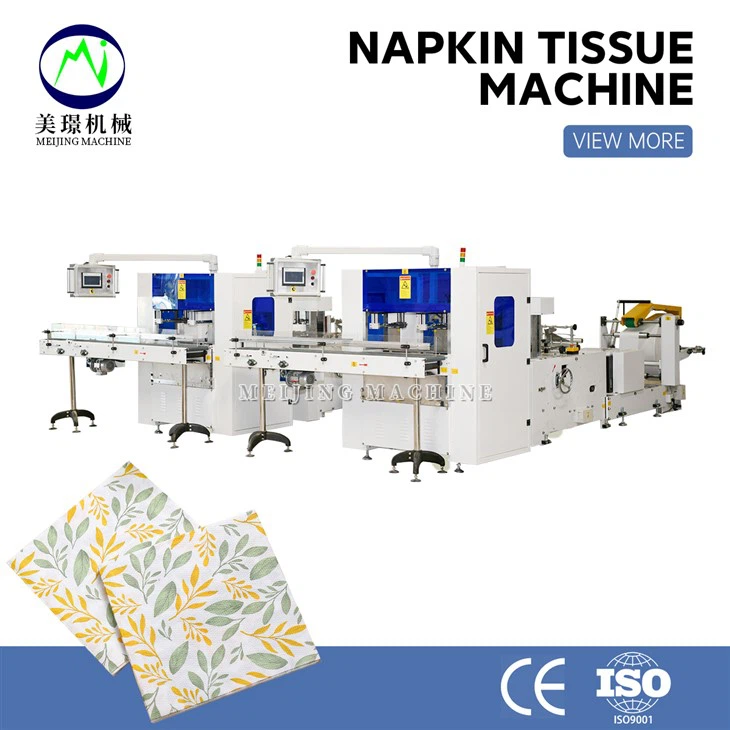

Automatic Napkin Paper Tissue Machine

Automatic Napkin Paper Tissue Machine

Description

1.Machine Model:CJ-ZD650
2.Application:to fold 1/4 napkin paper tissue.
3.Speed;160m/min,450-550sheets/min
4.Option: embossing unit, edge embossing unit, lamination unit, perfume unit.
5.Place of Origin: Foshan, China
6.Package way:PE film or Wooden Cases

Performance Description

Main Technical Parameter

Production Introduction



product-4059-2877

Automatic Napkin Paper Tissue Machine is to cut through the paper tray after printing, embossing and automatically folded into a square or rectangular-shaped napkin. Clear and bright with printing,overlay accuarcy, high speed stationary,is the processing of special equipment for high-grade napkins.



1. Used for embossing, cutting and folding into napkins.

2. The machine has an electronic counter, which can mark the number of papers required for each bundle for convenient packing.

3. The embossing roller can be heated by heating elements to make the pattern clearer and better.Line up, face to face

4. Napkin with 1/4, 1/6 and 1/8 folds can be designed and produced.So The Configured printing machine can be configured to translate to your requirements.

5. One color printing machine/two color printing machines can be configured as your requirements.

6.The Allocation between folding and cutting rollers can be adjusted to the layers.



1. Feeding unit:

Jumbo Stand, paper feed (pneumatic)

2) Pneumatic paper mounting device



2. Embossing:

1) A set of steel coils to steel coils (made according to customer requirements)

2) Pneumatic pressing device

3) Heating device



3. Folding unit:

1) Automatically count the number of napkins

3) Folding style :1/4, 1/6, 1/8 folded



Technical Datas

Model

CJ-ZD650 Automatic Napkin Paper Tissue Machine

Jumbo roll layer

18~25gsm, 1-3 plies

Max. width of jumbo roll

140mm~600mm

Jumbo roll outer size

Ø1100mm

Jumbo roll core Inner size

Ø76.2mm

Jumbo roll stand

1 stand

Unfolded dia

(140x140)-(600x600)mm

Calendering

Steel to rubber

Printing

2 colors printing

Embossing

Steel to rubber, embossing pattern to be confirmed by customer

Speed

160m/min,450-550 sheets/min

Power

3Kw, 380,50Hz

Weight

1600kg



Some Details



H9d07d5dbe7fa445f94dbcc6ca266ecf2h_.jpg  H8921c904bbbb4393bf64d5befbe763fdq_.png

Folding Part                                                                 Cutting Part



Finished Products



napkin paper machinerys.png  napkin tissue paper.png

Napkin Tissue                                                              Napkin Tissue (Printing)
