Description
1.Machine Model: FS-FCS210/2-8
2.Application: To produce V folded Face Tissue,Facial Tissue Products, Hand Towel
3.Machine Speed: 1000-1200 sheets/min/line
4.Siemens PLC computor program control,frequency invertor to adjust speed,auto counting.
5.Option: full embossing unit, edge embossing unit, lamination unit, perfume unit,color printing unit.
6.Place of Origin: Foshan, China.
7.Transport Package: Standard Exporot Wooden Cases

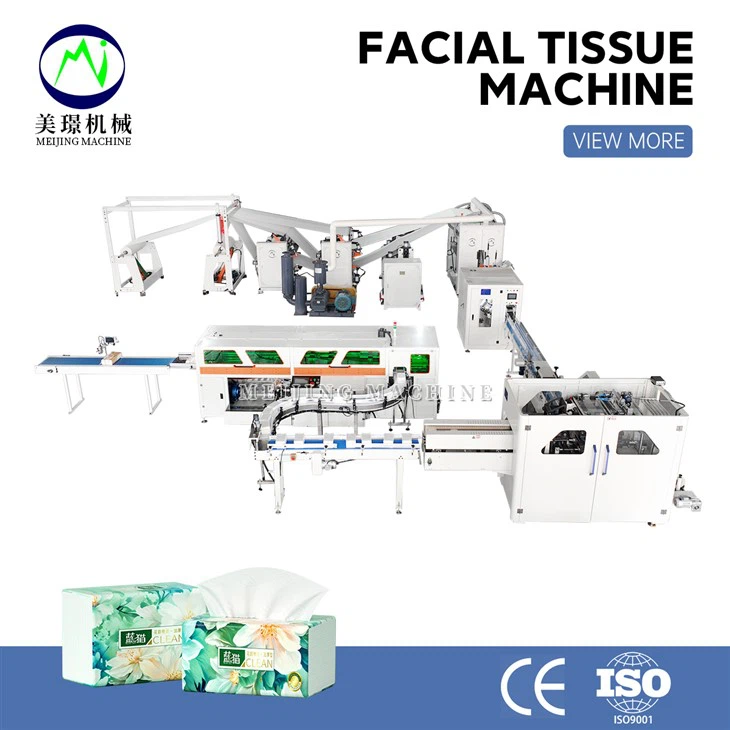

The Face tissue paper making machine is used for making drawer type facial tissue products.Take them out of the box one by one and use them easily.
1. Put the paper into the paper shaft, then into the embossing device and into the folding unit.
2. The machine adopts vacuum adsorption paper folding and automatic paper towel counting.
3. According to the needs of customers, the price of embossing and edging devices will also be increased. We can offer the price with or without embossing devices
4. Smooth running, fast speed and high production efficiency.
5. 600-1000 sheets per mins hem is neat and convenient.
Equipment Unit :
1. Embossing device (steel to steel).
2. Edge embossing device (steel to steel)
3.Advanced color rubber laminating unit (point pressing or point flattening)
4.Perfume Unit
| Max.jumbo roll width | 1300-1900mm |
| Max.jumbo roll diameter | φ1200mm, otherwise specified |
| Qty of unwind stand | 1-3 stands |
| Jumbo roll core's inner diameter | Standardφ3"(76.2mm) unless otherwise specified |
| Data setting | HMI, Siemens |
| Programming controller | PLC, Siemens |
| Operate speed | 1000-1200sheets/min/lane |
| Tissue Paper Expand size | Φ(180-190-200-210)x130-210mm |
| Tissue Paper Folding size | Φ(90-95-100-105x130-210mm V fold |
| Power | 5.5kw 380V 50HZ 3P |
| Mechanical driving | Driving by Step less gear box |
| Vacuum fan | 18.5kw 380V 50HZ 3P |
| Counting | Electronic counting |
| Embossing unit | Two sets steel to Steel embossing |
| Weight | 5 T-12T |

Facial Tissue Embossing Design
