Tissue Paper Rewinding Machine

Description

1.Model:FJ-DK 1575-3500B
2.Application:To produce bathroom tissue rolls,bathroom tissue paper,bathroom paper tissue,toilet paper rolls,toilet tissue rolls,toilet paper,toilet tissue paper,toilet paper tissue, toilet tissue paper roll,toilet paper tissue roll
3.Machine Speed: 200-250m/min
4.Siemens PLC control
5.Option: full embossing unit, edge embossing unit, lamination unit, perfume unit,color printing unit.
6.Place of Origin: Foshan, China
7.Transport Package: Standard Exporot Wooden Cases

Chat Now Send Inquiry

Performance Description

Main Technical Parameter

Production Introduction

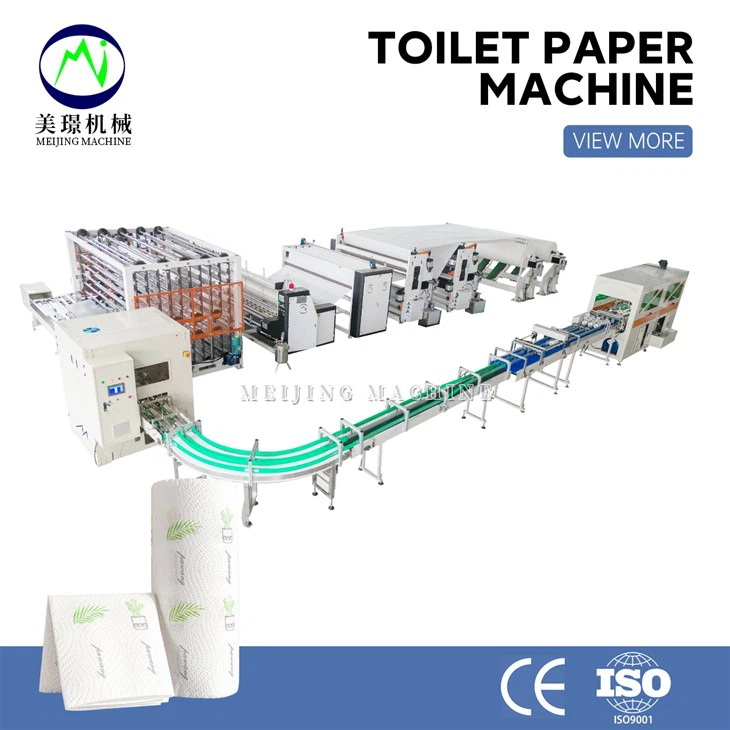

Tissue Paper Rewinding Machine

Automatic Tissue Paper Rewinding Machine is rewinding,perforating,embossing jumbo roll to different diameters of toilet paper rolls,then cut to different length by toilet paper roll cutting machine.

1.This machine is equipped with tension control and automatic unwinding, and can produce different grades of tissue products to meet different market needs.

2.Changing the raw material of the paper core,just pull out the roll core before rewinding.Electronic counting control to ensure the output weight and quantity of the product.

3.The use of 4 high-precision spiral knife, low noise, clear perforation, transmission, a larger range,international advanced PLC programmable control technology, human-machine interface operation, data sets and parameter failures displayed on the touch screen.

4.The automatic tissue paper rewinding machine is equipped with coreless, core, and rolled-tube toilet paper, which can switch between products in an instant, and can also be selected according to user needs.

Technical Paramters

Jumbo Roll Width	1800-3200 mm
Jumbo Roll Dia	50Ø10mm
Jumbo roll inner core dia	Ø76mm
Finished Products Dia	Ø80mm-280mm(other diameter,please specify)
Finished paper core dia	Ø30mm-60mm(other sizes,lease specify )
Perforation distance	90mm-160mm
Speed	0~250 m/min
Embossing device	Single-sided embossing, double-sided embossing, steel to steel embossing, pneumatic embossing (optional order item)
Embossing bottom roll	Rubber roller, felt roller, wool paper roller (optional order item)
Rewinding Unit	With core or coreless
Jumbo roll stand	2 stands (can be customized 3-4)
