Machine That Makes Toilet Paper

Description

1.Model:FJ-DK 1575-3500B
2.Application:To produce bathroom tissue rolls,bathroom tissue paper,bathroom paper tissue,toilet paper rolls,toilet tissue rolls,toilet paper,toilet tissue paper,toilet paper tissue, toilet tissue paper roll,toilet paper tissue roll
3.Machine Speed: 200-250m/min
4.Siemens PLC control
5.Option: full embossing unit, edge embossing unit, lamination unit, perfume unit,color printing unit.
6.Place of Origin: Foshan, China
7.Transport Package: Standard Exporot Wooden Cases

Chat Now Send Inquiry

Performance Description

Main Technical Parameter

Production Introduction

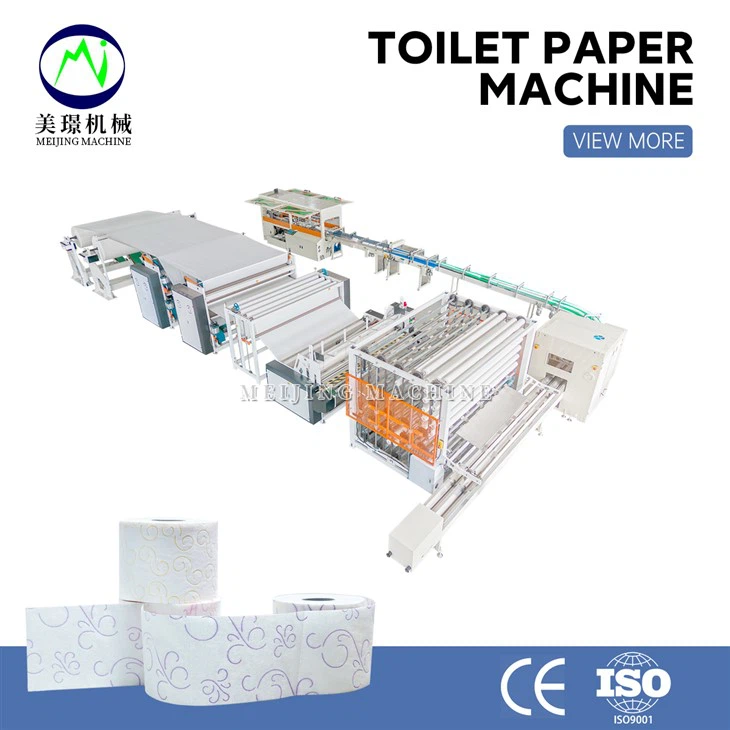

Machine That Makes Toilet Paper

Machine that makes toilet paper----The parent roll is punched and cut into various sizes as required. The finished product is neat, tidy and even tensioned. It has the characteristics of compact structure, convenient and stable operation, low power consumption, etc.The maximum production speed is 200-240m/min. The equipment is adjustable to meet the requirements of the finished product. This model is ideal equipment for paper mills and paper mills.

1.Machine that makes toilet paper adopting advanced programming technology can realize multi-layer compactness during the rewinding process and avoid the problem of loose paper core caused by long-term storage.

2.Equipped with high-precision spiral knife, the punching is clearer, pneumatic control, and the tail threading is convenient.

3.Glue: When making kitchen towels, apply glue on the convex surface to make the two layers of paper stick together to increase water absorption.

4. It can automatically change core, spray glue and seal without stopping the machine, and automatically lift when changing core.

5.2 wall wall type stands, pneumatic lifting system, wide flat belt drive; each thick roller can be adjusted independently.

6.This model adopts computer control system design, the production process is fully automatic, with complete functions and high production speed.

Technical Parameters

Name	Tissue paper roll making machine
Model	FJ-DK 1575B-2800
Maxi.width of parent roll(mm)	1800-2800mm
Perforating pitch	4pcs blades, size 90-160mm
Diameter of parent roll(mm)	Φ1200mm/1500mm
Programmable controller	Siemens PLC
Running Speed	200-240m/min
Power	Frequency conversion speed regulator 7.5-18kw(According to model and configuration order).
Finished Roll Winding	Coreless rewinding system
Driving	Independent motor, step by step frequency converter
